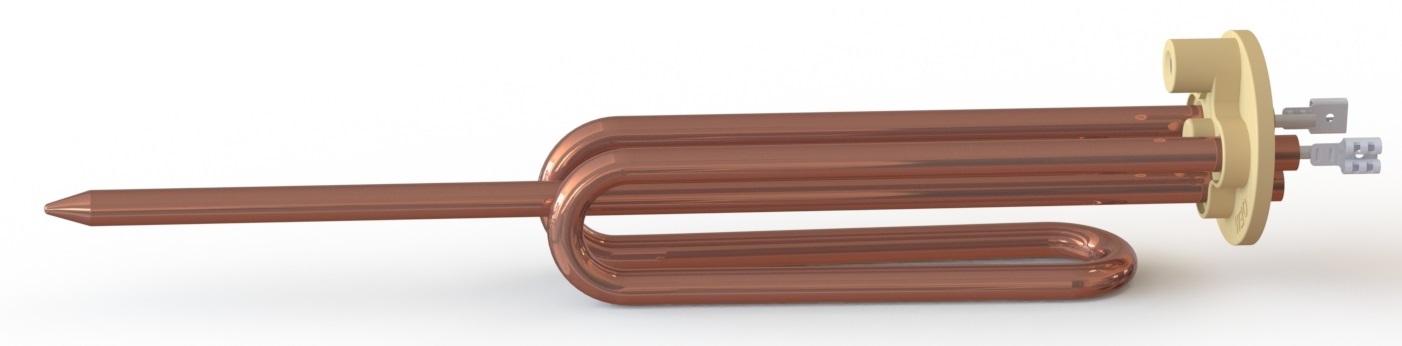

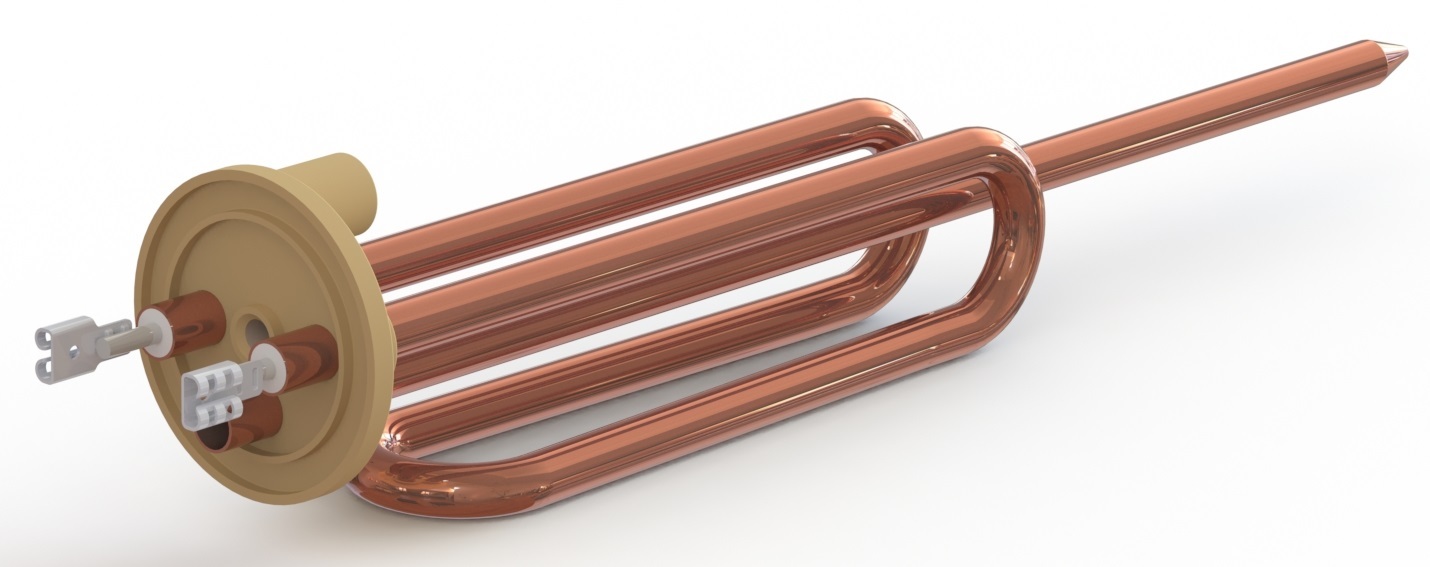

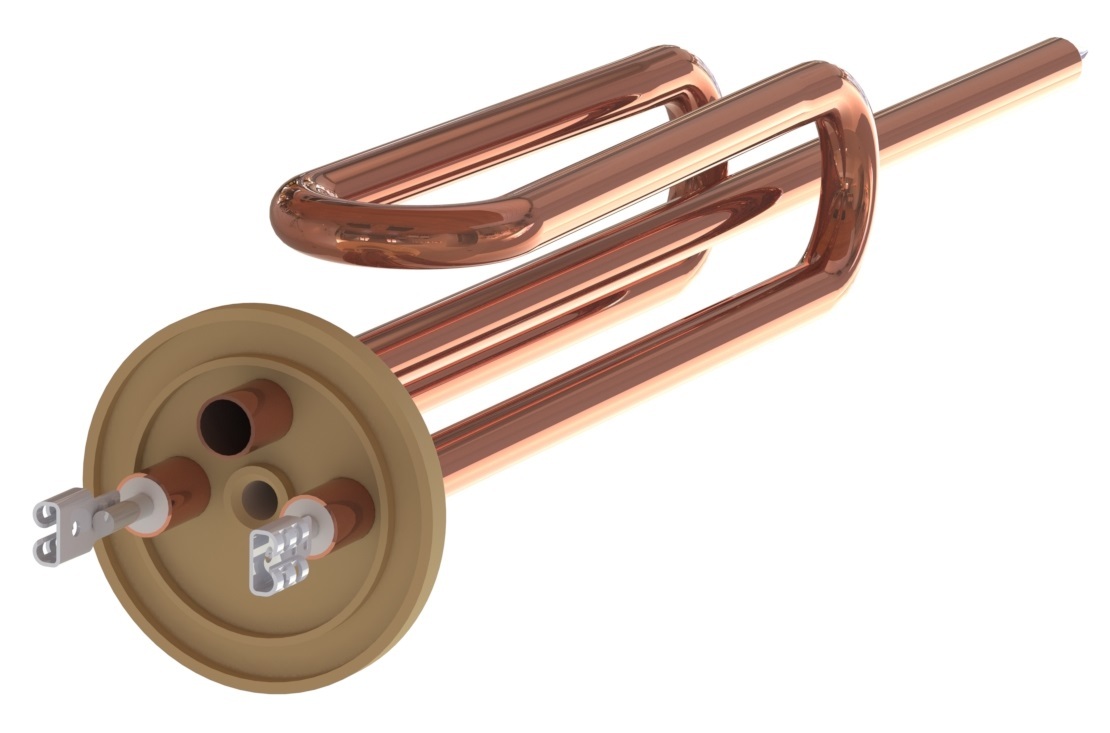

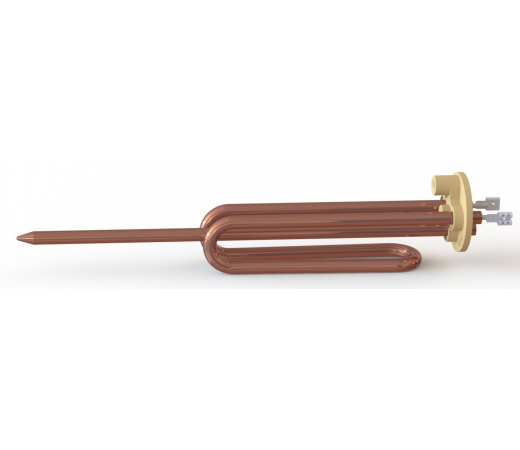

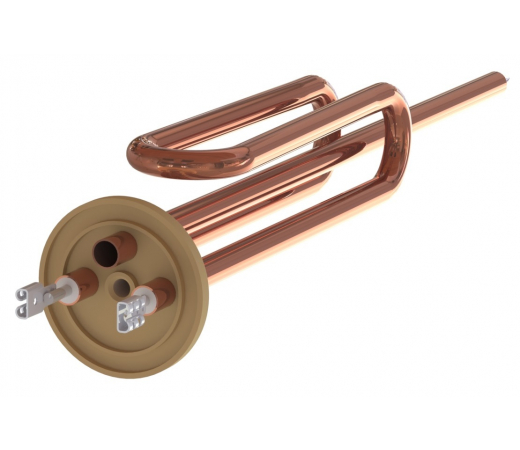

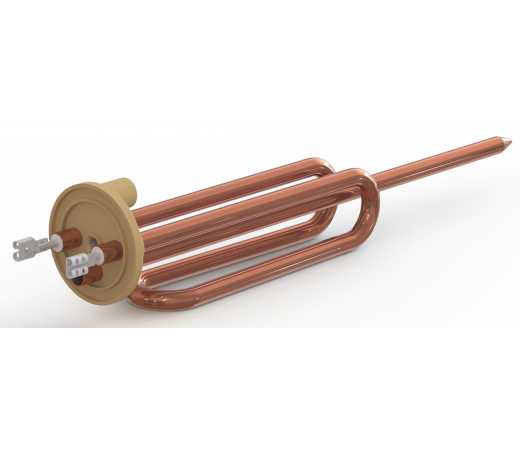

OEM RCA heating element for EWH

Price: on request

The tubular heating element is purposed for heating liquid by converting electrical energy to
thermal energy by means of thermal conductivity and it is a component of electric water
heaters (EWH)

Type:ТЭН-OEM-D-1500W/230V RCA

Overall dimensions, mm:Ø48 x 290

Diameter, TEN, mm:8,0/8,3

Submit your application

Description

Материалы изготовления:

Element material – Copper;
Thermostat pocket material – Copper;
Flange material – Brass;
Cover flange material – PA66 GF30;
Faston terminals material – AISI 304.

Specifications

Rated voltage, V:230
Rated power, W:1500
Surface load, W/cm2:10,65
Thermostat pocked diameter, mm:8
Anode connection:M5/М6
Female faston connections, mm:6,3
